Page

Endpoint Overview

Endpoint Name: Page
Purpose: Retrieves the definition of a page from Page Builder.
Method: GET
URL: /api/{version}/page

Authentication

Authentication Type: API key
Pass the API key in the request header: FrontendApi key=YOUR_API_KEY

Request

Headers

Header Name	Required	Description
FrontendApi key	Yes	Your API Key
accept	No	`application/json`

Path Parameters

Parameter	Type	Description
version	string	The version of the API to be used. Allowed values: `v1`.

Query Parameters

Parameter	Mandatory	Description	Example
`path`	Yes	Relative path of the Page Builder or Visual Site Manager page you want to render. When the path is a folder path and it doesn't end with `/`, that's equal to the index page under that folder. ✅ From version 0.6.0, it's no longer required that the path starts with `~`	`path=~/index` or `path=/index`
`token`	No	The JWT token used in the preview workflow. If present and valid, the working version of the page is returned. See Supporting the Page Builder preview (FE API) for a detailed description. ✅ Available from v1.0.0	`eyJhbGciOiJIUzI1NiIsInR5cCl6IkpXVCJ9.ey`
`culture`	Yes	Culture of the website.	`culture=en-gb`
`environment`	Yes	Environment where the page is executed.	`environment=integration`

Response

Response Codes

HTTP Status Code	Meaning
200	Successful request
404	Not Found (resource does not exist)
500	Internal Server Error

Response Body

structure (Object): Contains template, layouts, and modules of the requested page.

⚠️ A page can only have one Template.
key (Object): An object representing the basic information of the Template
- id (String): The name of the Template
- namespace (String): The namespace of the Template
type (String): The type of item being represented; in this case, it will always be template
properties (Object): An object representing a list of key-value objects filled with the name and value of the Template fields populated on either the VSM or the Page Builder
slots (Array): An array of defined areas that are part of the layout, filled with layouts and modules
items (Array): An array of nested layouts and modules
- See the Module Item Types and Layout Item Types sections below for details.
variables (Array): An array of objects containing the variables available for the requested page.
- See the Variable Types section for details. Possible type values are:
metadata (Array): An array of objects containing the metadata available for the requested page
- category (String): The category of the metadata
- key (String): The name of the metadata
- value (String, Integer, Boolean): The value of the metadata

Layout Item Type

key (Object): An object representing the basic information of the Layout
- id (String): The name of the Layout
- namespace (String): The namespace of the Layout
type (String): The type of item being represented; in this case, always layout
properties (Object): An object representing a list of key-value objects filled with the name and value of the Layout fields populated on the Page Builder
slots (Array): An array of defined areas that are part of the layout, filled with layouts and modules
slot (String): The name of the slot in which the Layout is contained if it's nested inside another Layout
items (Array): An array of nested layouts and modules
- See the Item Types section for details.

Module Item Type

key (Object): An object representing the basic information of the Module
- id (String): The name of the Module
- namespace (String): The namespace of the Module
type (String): The type of item being represented; in this case, always module
properties (Object): An object representing a list of key-value objects filled with the name and value of the Module fields populated on the Page Builder
slot (String): The name of the slot in which the Module is contained

Variable Type: KeyValue

key (String): The name of the variable
type (String): The type of variable
keyValue (Object): An object containing the value of the variable
- value: The value of the variable (string, number, boolean, guid, datetime — only dates expressed as yyyy-MM-dd will be accepted)

Variable Type: Stylesheet

key (String): The name of the variable
type (String): The type of variable
stylesheet (Object): An object containing the stylesheet information
- source (String): The URL of the CSS to be loaded

Variable Type: Script

key (String): The name of the variable
type (String): The type of variable
script (Object): An object containing the script information
- source (String): The URL of the JavaScript file to be loaded
- async (Boolean): The value of the async attribute rendered on the <script> tag
- defer (Boolean): The value of the defer attribute rendered on the <script> tag

Variable Type: DataItem (deprecated)

key (String): The name of the variable
type (String): The type of variable
dataItem (Object): An object containing the information of the single FORGE WCM entity to retrieve
- path (String): The WCM data path
- entityType (String): The .NET type DTO to map the JSON response

Variable Type: DataList (deprecated)

key (String): The name of the variable
type (String): The type of variable
dataList (Object): An object containing the information of the FORGE WCM entities to retrieve
- path (String): The WCM data path
- entityType (String): The .NET type DTO to map the JSON response

Successful Response Example

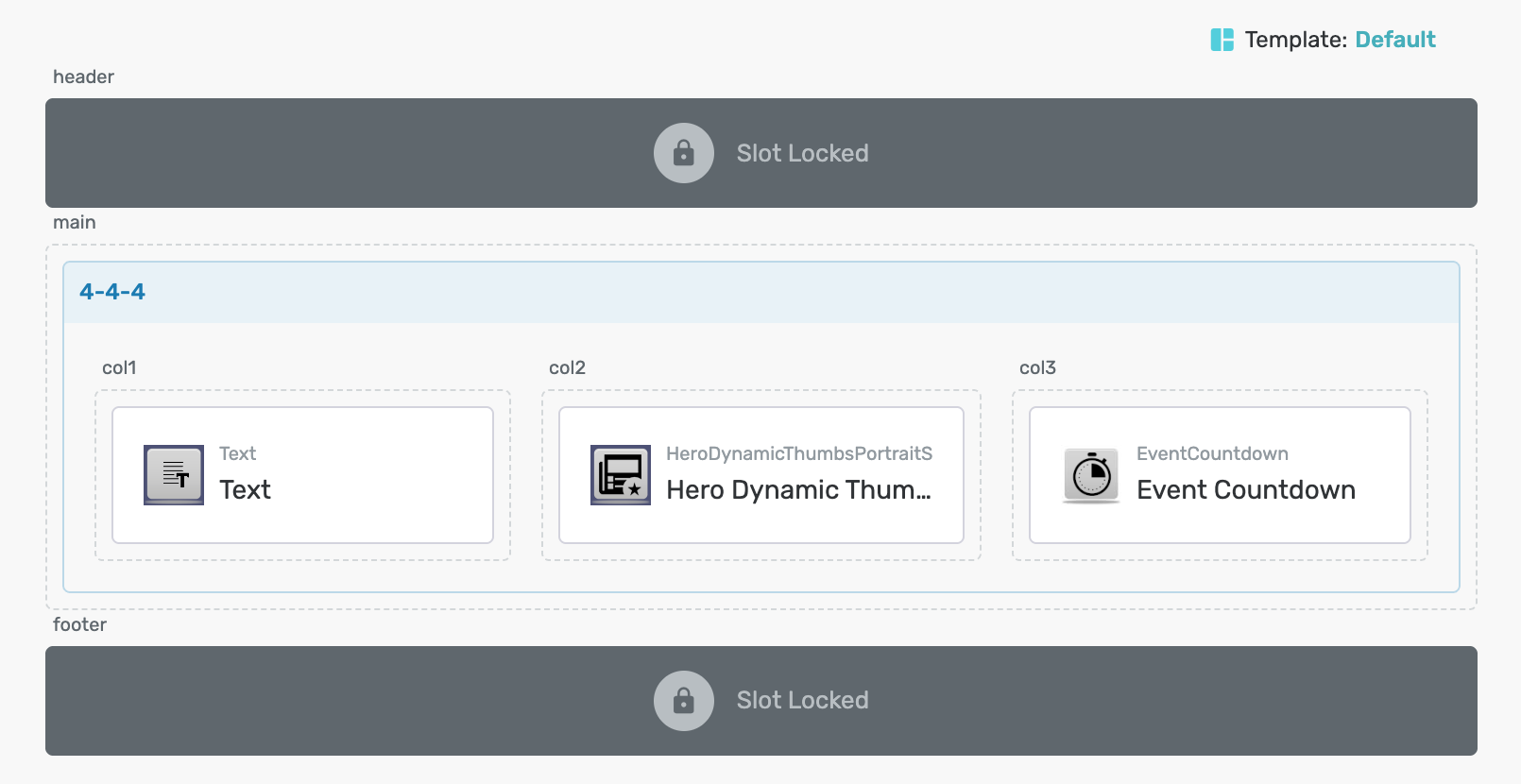

This is the response we get from a page built with:

One Default template that contains:
- One ThreeColumns layout with 3 nested modules and 3 defined slots: left, center, right
  - One SimpleText module that will be placed on the left slot of the ThreeColumns layout
  - One Hero module that will be placed on the center slot of the ThreeColumns layout
  - One Event Countdown module that will be placed on the right slot of the ThreeColumns layout

alt text

This is the output JSON:

▼ "root": {
▼ "data": {
▼ "structure": {
▼ "key": {
"id": "Default"
"namespace": "react_Template"
}
"type": "template"
▼ "properties": {
}
▼ "slots": [
"0": "header"
"1": "main"
"2": "footer"
]
▼ "items": [
▼ "0": {
▼ "key": {
"id": "Columns444"
"namespace": "react_Layout"
}
"type": "layout"
▼ "properties": {
}
"slot": "main"
▼ "slots": [
"0": "col1"
"1": "col2"
"2": "col3"
]
▼ "items": [
▼ "0": {
▼ "key": {
"id": "EventCountdown"
"namespace": "react_Module"
}
"type": "module"
▼ "properties": {
"slug": "alpha-event"
"headerTitle": "Alpha event!"
}
"slot": "col3"
}
▼ "1": {
▼ "key": {
"id": "HeroDynamicThumbsPortraitSmall"
"namespace": "react_Module"
}
"type": "module"
▼ "properties": {
"selectionSlug": "test-new-selection"
"isAnimated": true
}
"slot": "col2"
}
▼ "2": {
▼ "key": {
"id": "Text"
"namespace": "react_Module"
}
"type": "module"
▼ "properties": {
"slug": "alpha-text"
}
"slot": "col1"
}
]
}
]
}
▼ "variables": [
▼ "0": {
"type": "keyValue"
"key": "inc_header"
▼ "keyValue": {
"value": "~/_libraries/_header"
"valueType": "string"
}
}
▼ "1": {
"type": "keyValue"
"key": "inc_footer"
▼ "keyValue": {
"value": "~/_libraries/_footer"
"valueType": "string"
}
}
▼ "2": {
"type": "keyValue"
"key": "sitename"
▼ "keyValue": {
"value": "FORGE GO"
"valueType": "string"
}
}
▼ "3": {
"type": "keyValue"
"key": "test_deprecation"
▼ "keyValue": {
"value": true
"valueType": "boolean"
}
}
▼ "4": {
"type": "keyValue"
"key": "inc_amp_header"
▼ "keyValue": {
"value": "~/_libraries/_ampheader"
"valueType": "string"
}
}
▼ "5": {
"type": "keyValue"
"key": "user_profile"
▼ "keyValue": {
"value": "/account/profile/overview"
"valueType": "string"
}
}
▼ "6": {
"type": "keyValue"
"key": "inc_hamburger"
▼ "keyValue": {
"value": "~/react-fe/layouts/hamburger"
"valueType": "string"
}
}
]
▼ "metadata": [
▼ "0": {
"category": "seo"
"key": "sitename"
"value": "site-name"
"type": "string"
}
▼ "1": {
"category": "config"
"key": "vanityurl"
"value": "https://forge.com/"
"type": "string"
}
▼ "2": {
"category": "schemaorg"
"key": "logourl"
"value": "https://forge.com/assets/icons/forge.png"
"type": "string"
}
▼ "3": {
"category": "seo"
"key": "disallows"
"value": "/testing"
"type": "string"
}
▼ "4": {
"category": "ampconsent"
"key": "message"
"value": "Consent message"
"type": "string"
}
▼ "5": {
"category": "ampconsent"
"key": "privacytitle"
"value": "Privacy Title"
"type": "string"
}
▼ "6": {
"category": "ampconsent"
"key": "privacylink"
"value": "/privacy-policy"
"type": "string"
}
▼ "7": {
"category": "pwa"
"key": "name"
"value": "Forge GO Sandbox"
"type": "string"
}
▼ "8": {
"category": "pwa"
"key": "shortname"
"value": "FORGE GO"
"type": "string"
}
▼ "9": {
"category": "pwa"
"key": "starturl"
"value": "/"
"type": "string"
}
▼ "10": {
"category": "pwa"
"key": "scope"
"value": "/"
"type": "string"
}
▼ "11": {
"category": "pwa"
"key": "display"
"value": "standalone"
"type": "string"
}
▼ "12": {
"category": "pwa"
"key": "themecolor"
"value": "#212553"
"type": "string"
}
▼ "13": {
"category": "pwa"
"key": "backgroundcolor"
"value": "#dd4a68"
"type": "string"
}
▼ "14": {
"category": "pwa"
"key": "icon"
"value": "/assets/icons/fg.png"
"type": "string"
}
▼ "15": {
"category": "appconfig"
"key": "entry_point"
"value": "~/_libraries/mobileapp/_entrypoint"
"type": "string"
}
▼ "16": {
"category": "theming"
"key": "enabled"
"value": false
"type": "boolean"
}
▼ "17": {
"category": "ampconsent"
"key": "title"
"value": "Consent title"
"type": "string"
}
▼ "18": {
"category": "socials"
"key": "fbappid"
"value": "354888428940751"
"type": "string"
}
▼ "19": {
"category": "socials"
"key": "twitterid"
"value": "21774863"
"type": "string"
}
▼ "20": {
"category": "seo"
"key": "image"
"value": "https://res.cloudinary.com/SeoImage/SeoImage.jpg"
"type": "string"
}
▼ "21": {
"category": "sitemap"
"key": "blacklist"
"value": "test|testing|account|search|mobileapp|multistories|sample_modules|venues|players|teams|sitemap|calendar/list|events|vimeovideos|~/photos"
"type": "string"
}
▼ "22": {
"category": "socials"
"key": "fbpages"
"value": "107302428215545,102044428874343"
"type": "string"
}
▼ "23": {
"category": "config"
"key": "logo"
"value": "https://forge.com/assets/icons/forgego/logos/forgego_horiz_negative_S.svg"
"type": "string"
}
▼ "24": {
"category": "schemaorg"
"key": "organizationname"
"value": "FORGE GO"
"type": "string"
}
▼ "25": {
"category": "testDuplication"
"key": "display"
"value": "standalone"
"type": "string"
}
▼ "26": {
"category": "theming"
"key": "cta_color"
"value": "#16cc50"
"type": "string"
}
▼ "27": {
"category": "theming"
"key": "header_text_color"
"value": "#000"
"type": "string"
}
▼ "28": {
"category": "theming"
"key": "footer_background_color"
"value": "#ffae34"
"type": "string"
}
▼ "29": {
"category": "theming"
"key": "footer_text_color"
"value": "#000"
"type": "string"
}
▼ "30": {
"category": "theming"
"key": "header_text_color_hover"
"value": "#ffae34"
"type": "string"
}
▼ "31": {
"category": "theming"
"key": "footer_text_color_hover"
"value": "#ff4c47"
"type": "string"
}
▼ "32": {
"category": "theming"
"key": "button_background_color"
"value": "#16cc50"
"type": "string"
}
▼ "33": {
"category": "theming"
"key": "button_text_color"
"value": "#000"
"type": "string"
}
▼ "34": {
"category": "theming"
"key": "roofline_background_color"
"value": "#ff4c47"
"type": "string"
}
▼ "35": {
"category": "theming"
"key": "roofline_text_color"
"value": "#000"
"type": "string"
}
▼ "36": {
"category": "theming"
"key": "header_background_color"
"value": "#ff4c47"
"type": "string"
}
▼ "37": {
"category": "seo"
"key": "title"
"value": "This is my meta-title "
"type": "string"
}
▼ "38": {
"category": "theming"
"key": "headerandfootercolor"
"value": "red"
"type": "string"
}
▼ "39": {
"category": "theming"
"key": "headerandfootertextcolor"
"value": "red"
"type": "string"
}
▼ "40": {
"category": "testduplication"
"key": "metadata_long_name_long_name"
"value": false
"type": "boolean"
}
▼ "41": {
"category": "testduplication"
"key": "meta_data_date"
"value": "2022-10-20T00:00:00Z"
"type": "datetime"
}
]
}
▼ "meta": {
"version": "1.0"
}
}

Common Errors and Troubleshooting

Nothing known.

Endpoint Overview​

Authentication​

Request​

Headers​

Path Parameters​

Query Parameters​

Response​

Response Codes​

Response Body​

Layout Item Type​

Module Item Type​

Variable Type: KeyValue​

Variable Type: Stylesheet​

Variable Type: Script​

Variable Type: DataItem (deprecated)​

Variable Type: DataList (deprecated)​

Successful Response Example​

Common Errors and Troubleshooting​

Endpoint Overview

Authentication

Request

Headers

Path Parameters

Query Parameters

Response

Response Codes

Response Body

Layout Item Type

Module Item Type

Variable Type: KeyValue

Variable Type: Stylesheet

Variable Type: Script

Variable Type: DataItem (deprecated)

Variable Type: DataList (deprecated)

Successful Response Example

Common Errors and Troubleshooting
